Introduction to High Voltage Insulators
In the world of electricity transmission, high voltage systems play a critical role in delivering electricity efficiently over long distances. Central to these systems are high voltage insulators, which ensure that electricity is safely and effectively transmitted. These insulators prevent electrical faults and serve as a critical component in ensuring the reliability and safety of power systems. In this article, we will explore the different types of high voltage insulators, their applications, and help you determine which type might be best suited for your needs.
Functionality of High Voltage Insulators
● Role of Insulators in Power Transmission
High voltage insulators are an essential component in electricity transmission networks, as they support the transmission lines while preventing unwanted flow of current to the ground. These insulators function by impeding the flow of electrical current, thereby helping to avoid line-to-line faults and ensuring the safety of surrounding environments.
● Ensuring Safety and System Integrity
By isolating live conductors from grounded structures, insulators prevent electrocution hazards and maintain the integrity of the electrical system. This function is vital for protecting both equipment and personnel involved in the maintenance and operation of transmission networks.
Glass Insulators in High Voltage Applications
● Advantages of Using Glass Insulators

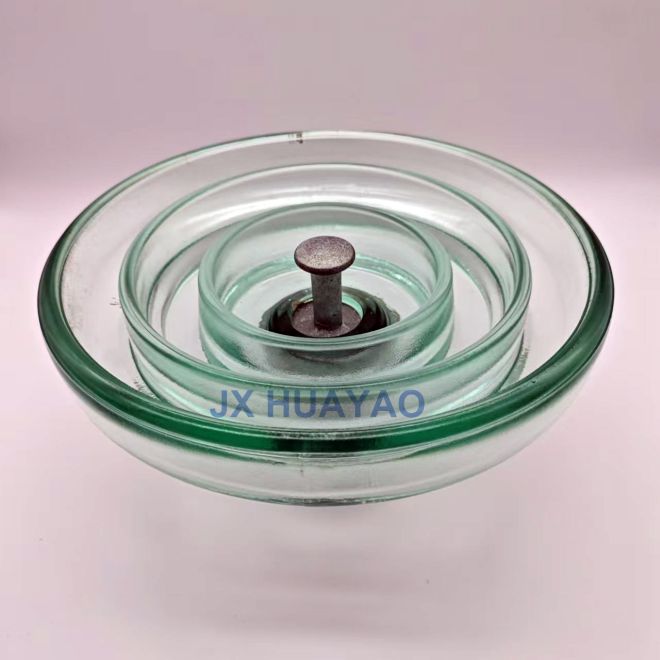

The use of glass insulators in high voltage applications is widespread due to their excellent electrical properties and longevity. large glass insulators, offered by manufacturers, provide high mechanical strength and excellent dielectric properties. They are particularly valued for their ability to self-clean, as their smooth surface allows rain to wash away contaminants, maintaining their insulating properties under various environmental conditions.
● Challenges in Polluted Environments
Despite their advantages, glass insulators face challenges in polluted environments. Contaminants such as dust and salt can accumulate on the surface, potentially leading to decreased dielectric strength and flashovers. Manufacturers and suppliers offer solutions, such as RTV coatings, to mitigate these issues, ensuring reliable performance even in adverse conditions.
Porcelain Insulators: A Traditional Choice
● Composition and Properties of Porcelain Insulators
Porcelain insulators have been a mainstay in high voltage power systems for many years. Made from kaolinite clay mixed with other materials and fired at high temperatures, porcelain insulators offer excellent mechanical strength and are suitable for a wide range of applications, including medium-voltage transmission lines.
● Suitability for Medium-Voltage Lines
Porcelain insulators are particularly well-suited for medium-voltage lines, where their robust construction and ability to withstand significant electrical stress make them an ideal choice. However, like glass insulators, they require maintenance to ensure that environmental contaminants do not compromise their performance.
Composite Insulators: Modern Innovations
● Benefits Over Traditional Insulators
Composite insulators, also known as polymer or rubber insulators, represent the latest advancement in high voltage insulation. They are lighter and smaller than traditional glass and porcelain insulators, reducing the mechanical load on support structures. Additionally, they possess high mechanical strength and excellent resistance to environmental factors, making them ideal for areas prone to extreme weather conditions.
● Environmental Resilience and Mechanical Strength
Composite insulators perform well in environments where traditional insulators may struggle. Their resistance to physical and chemical degradation, along with their lighter weight, make them a popular choice for modern transmission systems.
Challenges of Insulator Flashovers
● Common Causes of Flashover Events
Flashovers, or unintentional electrical discharges, are a significant challenge in high voltage transmission systems. They can occur due to surface contamination, moisture, or a combination of factors. Flashovers can lead to power outages, affecting system reliability and safety.
● Impact of Flashovers on Transmission Systems
Flashovers not only cause immediate disruption but can also damage equipment, leading to costly repairs and maintenance. Preventing flashovers is crucial for maintaining system integrity and ensuring efficient electricity transmission.
RTV Coating for Insulator Protection
● Enhancing Performance with RTV Coatings
RTV (Room Temperature Vulcanizing) silicone coatings offer a reliable solution for improving the performance of high voltage insulators. These coatings provide a hydrophobic layer that repels water and contaminants, significantly reducing the risk of flashovers.
● Applications in Polluted and Humid Conditions
RTV coatings are particularly beneficial in polluted and humid environments, where traditional insulators may struggle. By applying these coatings, the insulator's surface remains cleaner, maintaining its dielectric strength and ensuring reliable operation.
Comparative Analysis of Insulator Materials
● Strengths and Weaknesses of Insulator Types
When selecting the best insulator for high voltage applications, it's crucial to consider the strengths and weaknesses of each material type:
- Glass Insulators: Offer excellent dielectric properties and self-cleaning capabilities but may be prone to breakage under mechanical stress.
- Porcelain Insulators: Provide robust mechanical strength and are well-suited for medium-voltage applications but require regular maintenance to prevent contamination.
- Composite Insulators: Offer lightweight, high-strength, and environmentally resistant solutions but may deteriorate under extreme electrical stress.
● Performance Under Different Environmental Conditions
Each insulator type performs differently under various environmental conditions. Understanding these differences is key to selecting the right insulator for specific applications, ensuring optimal performance and reliability.
Selecting the Best Insulator for High Voltage Systems
● Factors to Consider in Insulator Selection
When choosing an insulator for high voltage systems, several factors must be considered, including environmental conditions, mechanical load requirements, and dielectric strength. It's important to balance these factors to select an insulator that meets both performance and safety criteria.
● Matching Materials to System Requirements
The right insulator material should match the specific requirements of the system, considering factors such as environmental exposure, voltage levels, and mechanical constraints. Careful selection ensures long-term reliability and efficiency in high voltage transmission networks.
Future Trends in High Voltage Insulators
● Emerging Technologies and Materials
The field of high voltage insulation continues to evolve, with new materials and technologies being developed to enhance performance and reliability. Innovations such as nano-composite materials and advanced coatings offer promising improvements in insulator technology.
● Advancements in Insulator Design and Coatings
Future advancements in insulator design and coatings will continue to address the challenges of environmental pollution and mechanical stress, offering improved solutions for high voltage applications. These developments will contribute to increased efficiency and reliability in power transmission systems.
