In the realm of power transmission and distribution, selecting the right insulator is critical for ensuring the safety and efficiency of electrical systems. glass disc insulators and ceramic insulators are two of the most commonly used types of insulators, each possessing unique properties and benefits. This comprehensive analysis will delve into the intricacies of these insulators, comparing their compositions, strengths, and performances to determine which might be the superior choice for various applications.
Introduction to Insulators: Glass vs. Ceramic
● Overview of Insulators in Power Systems
Insulators play a pivotal role in power transmission by insulating conductive wires from each other and from the supporting structures of transmission towers. They prevent the unwanted flow of current into the ground, thereby enhancing the safety and efficiency of power systems. Glass disc insulators and ceramic insulators are among the most prevalent in the industry, each offering distinct advantages and considerations.
● Importance of Choosing the Right Material
The selection of the appropriate insulator material can significantly impact the performance and longevity of power lines. Factors such as electrical insulation properties, mechanical strength, environmental impact, and cost must be considered when choosing between glass disc insulators and ceramic insulators.

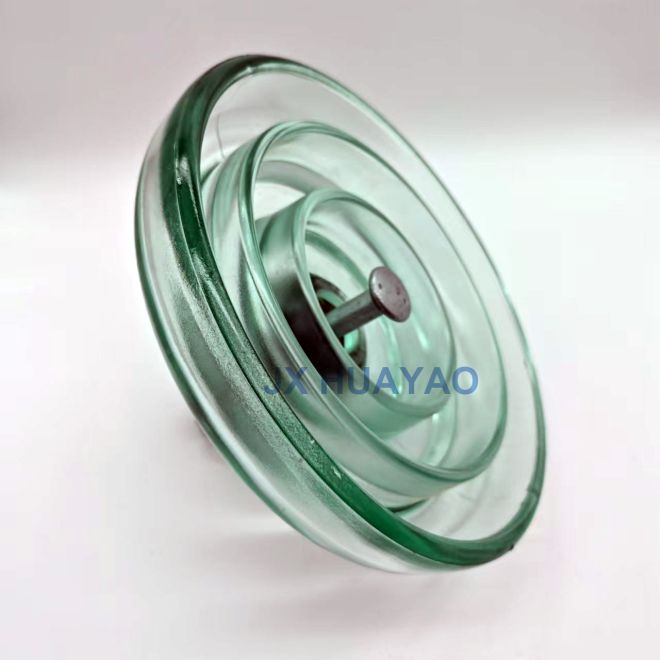

Composition and Manufacturing: Glass Disc Insulator
● Material Properties of Glass
Glass disc insulators are made from toughened glass, which is known for its high dielectric strength and resistance to thermal expansion. The transparency of glass allows for easy detection of faults, offering a visual advantage over non-transparent materials. This quality also facilitates the identification of internal defects, such as bubbles and impurities, which could compromise performance.
● Manufacturing Process of Glass Insulators
The production of glass disc insulators involves heating the glass material until it melts, followed by a cooling process that enhances its mechanical strength through tempering. This results in insulators with a high tensile strength, making them suitable for high voltage applications. The manufacturing process also ensures a consistent quality of glass disc insulators, contributing to their reliability and efficiency.
Composition and Manufacturing: Ceramic Insulator
● Material Properties of Porcelain
Ceramic insulators, typically made from porcelain, consist of a variety of materials including china clay, feldspar, and quartz. Porcelain offers excellent thermal resistance and mechanical strength, reducing the likelihood of failure under mechanical stress. The composite nature of ceramic insulators provides them with robustness and a relatively higher weight compared to glass insulators.
● Manufacturing Process of Ceramic Insulators
The production of ceramic insulators involves the meticulous mixing and heating of raw materials to form a hard, dense insulator. This process often includes a high-temperature firing stage that vitrifies the surface, enhancing its resistance to environmental factors such as moisture and pollutants. Ceramic insulators are thus highly durable and capable of withstanding adverse weather conditions.
Mechanical Strength Comparison
● Compressive Strength Differences
Compressive strength is a critical factor in assessing an insulator's ability to withstand mechanical loads without being crushed. Ceramic insulators typically exhibit higher compressive strength compared to glass disc insulators, making them more suitable for applications where the insulator must endure substantial mechanical stress.
● Tensile Strength Analysis
Conversely, glass disc insulators demonstrate superior tensile strength, which is vital for applications involving high voltage transmission lines. Their ability to resist tension without failing makes them a preferred choice for long-span transmission lines where tensile forces are prevalent.
Dielectric Strength and Electrical Performance
● Comparison of Dielectric Strength Values
Dielectric strength is a measure of an insulator’s ability to resist electric breakdown under high voltage. Glass disc insulators exhibit a higher dielectric strength compared to ceramic insulators, offering enhanced performance under high voltage conditions. This makes them particularly effective in ultra-high voltage applications.
● Impact on Electrical Performance
The superior dielectric properties of glass disc insulators translate into more reliable electrical performance, reducing the risk of electrical discharge and increasing the efficiency of power transmission systems. However, the choice between glass and ceramic will ultimately depend on the specific requirements of the application, including environmental conditions and mechanical stress.
Durability and Lifespan: Longevity Insights
● Lifespan of Glass vs. Ceramic Insulators
The longevity of an insulator is influenced by its resistance to environmental and mechanical stresses. Ceramic insulators are known for their long service life and resistance to ageing, whereas glass disc insulators, while exhibiting slightly shorter lifespans, offer consistent performance over time due to their homogeneous structure.
● Factors Affecting Durability
Both glass and ceramic insulators are susceptible to environmental factors such as temperature fluctuations and pollution. Ceramic insulators tend to exhibit better performance in areas prone to pollution due to their robust surface. Glass disc insulators, however, benefit from a self-cleaning surface and transparency, which allows for easy maintenance and defect detection.
Environmental Performance: Weather Resistance
● Impact of Moisture and Temperature
Moisture and temperature variations can significantly affect the performance of insulators. Glass disc insulators have a lower coefficient of thermal expansion and excellent resistance to temperature-induced stress. Ceramic insulators also perform well under temperature extremes but are more resistant to moisture and raindrop-induced leakage currents.
● Pollution Withstand Capabilities
In terms of pollution withstand performance, glass disc insulators offer an advantage due to their smooth, hydrophobic surface that resists pollution accumulation. This quality minimizes the risk of conductive paths forming across the insulator surface, thus enhancing reliability in polluted environments.
Installation and Maintenance Considerations
● Ease of Installation and Maintenance
Glass disc insulators are generally lighter than ceramic insulators, facilitating easier handling and installation. Their transparency aids in the quick identification and replacement of faulty units. Ceramic insulators, while heavier, are more robust and thus less prone to damage during installation.
● Cost Implications for Each Type
Cost is a significant factor in the selection of insulators. Glass disc insulators are typically less expensive than ceramic insulators, offering a cost-effective solution for high volume applications. However, the long lifespan and low maintenance requirements of ceramic insulators can offset their initial higher cost over time.
Fault Detection and Aesthetics
● Transparency and Fault Detection in Glass Insulators
The inherent transparency of glass disc insulators provides a clear advantage in fault detection, allowing for visible inspection of potential defects or damage. This feature significantly reduces maintenance time and costs, as issues can be swiftly identified and rectified.
● Aesthetic and Practical Considerations
From an aesthetic standpoint, glass disc insulators present a more visually appealing solution, especially in urban settings where the appearance of electrical infrastructure is a consideration. Their sleek design and reflective surface can be seen as enhancing the visual aesthetics of power lines.
Global Usage and Market Preferences
● Popularity Across Different Regions
The choice between glass and ceramic insulators often depends on regional preferences and the specific environmental conditions. Glass disc insulators are widely used in regions such as the United States and Europe due to their high performance in diverse climates. Conversely, ceramic insulators are preferred in areas with high pollution levels and specific mechanical requirements.
● Industry Trends and Preferences in Insulator Usage
Industry trends indicate a growing preference for glass disc insulators due to advancements in manufacturing technology and the ability to produce insulators with diverse specifications. However, ceramic insulators continue to hold a significant market share due to their proven track record and suitability for specific applications.
Conclusion: Which is Better?
Determining whether glass disc insulators or ceramic insulators are better depends on the specific requirements of the application. Glass disc insulators offer superior dielectric strength, ease of fault detection, and cost-effectiveness, making them an attractive option for many applications. Ceramic insulators, with their high compressive strength and durability, are ideal for environments with harsh mechanical or pollution-related challenges. Ultimately, the best choice hinges on the balance of these factors in the context of the intended use.
---
