High voltage suspension 100 kN porcelain insulator U100B porcelain insulators

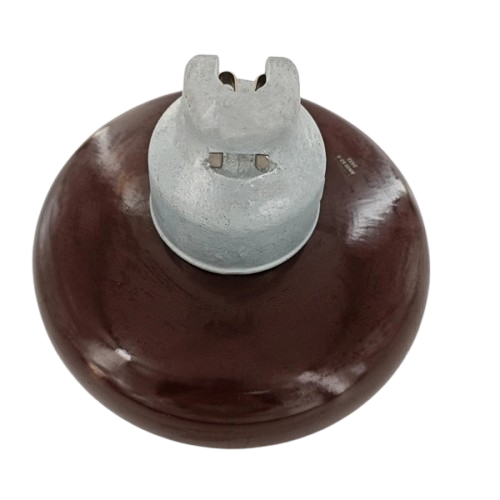

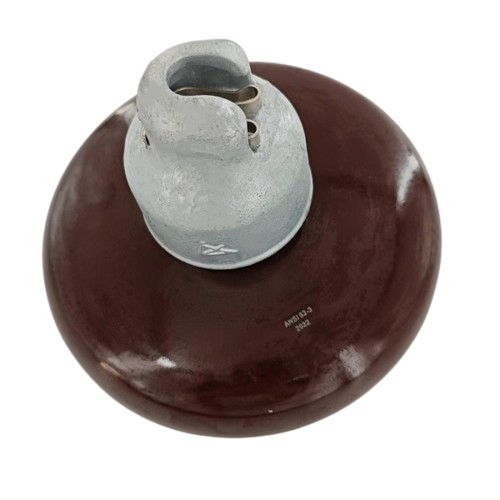

100kN standard disc suspension porcelain insulator U100B 100kN standard disc suspension porcelain insulator U100B is a very common and popular porcelain insulator in Chinese market and overseas market such as Banglalesh, Vietnam, Iran, Algeria etc. Jiangxi huayao electric Co.,ltd is professional in produce this item, the daily output of this item is 10000 pieces.

Cap insulator: The insulation part is circular or cap shaped, which is commonly used in scenarios such as equipment connection in power systems and can provide good insulation protection.
Disc insulator: It has a disc-shaped insulating part and is widely used in high-voltage equipment. The disc-shaped suspension ceramic insulator, with its disc-shaped structure, helps to increase the creepage distance and improve insulation performance.
String insulator: composed of multiple insulator units connected in series. By connecting multiple insulators in series, the electrical insulation strength can be improved to meet the insulation requirements of high-voltage lines.

Product Details

100kN standard disc suspension porcelain insulator U100B Place of Origin:  China Brand name:  HUAYAO Certification:  ISO9001 Daily output:  10000 piece Payment & Shipping Minimum Order Quantity: 10 pieces Packaging Details:  normal export packaging Supply Ability:  50000pcs Delivery Port:  Ningbo,Shanghai Payment term:  TT, L/C, FCA

Quick Detail：

Standard Profile Suspension Insulators U100BL Dimensions Diameter (D): 255mm Spacing (H): 146mm Creepage Distance: 295/320mm Coupling Size: 16mm Mechanical Values Mechanical Failing Load: 100kN Tension Proof: 50kN Electrical Values Dry Power-frequency Withstand Voltage: 70kV Wet Power-frequency Withstand Voltage: 40kV Dry Lightning Impulse Withstand Voltage: 100kV Puncture Withstand Voltage: 110kV Radio Influence Voltage Data Test Voltage RMS to Ground: 10kV Maximum RIV at 1000 kHz: 50μV

Test report of Jiangxi huayao electric Co.,ltd porcelain insulator:

Jiangxi Huayao electric Co.,ltd provide test report from third party such as Xi'an High Voltage Apparatus Research Institute Co., Ltd. (XIHARI) ,National ceramic product quality inspection and test center.
Pre-shipment inspection from third party such as INTERTEK, SGS, BV or customer themselves.

The Production process flow:

The production process of porcelain insulators in Jiangxi Huayao Electric Co.,Ltd is as follows:
Mix raw material=>make blank shape=>Drying=> Glazing=>put into kiln=> Glue assembly=> routine test and other test=> Finished products package

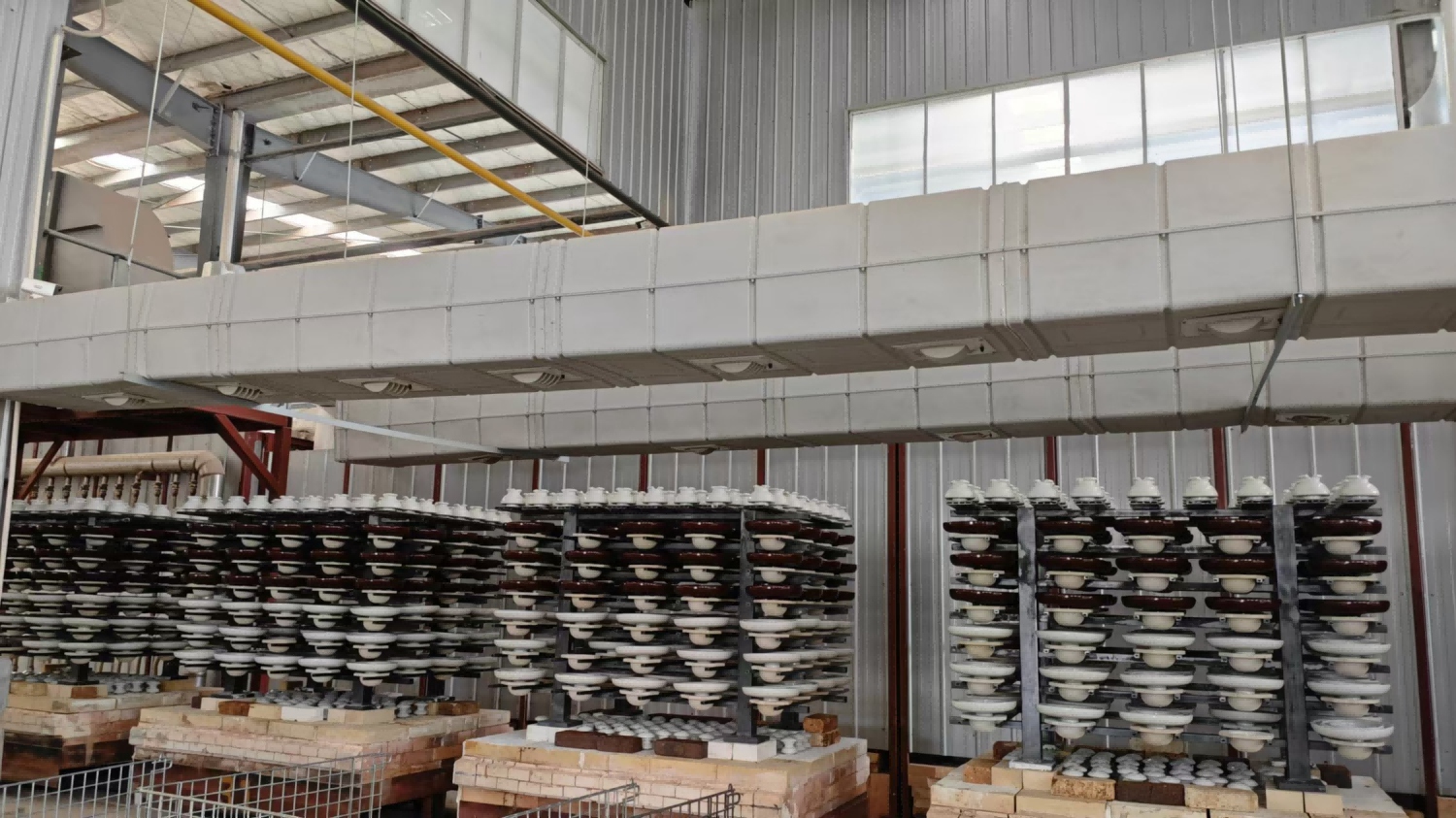

Workshop of Jiangxi Huayao Electric Co.,Ltd：
