Overhead Line Transmission Line ANSI 57-3 Series Porcelain Line Post Insulator
ANSI 57-3 PORCELAIN INSULATOR POST TYPE 15 KV standard horizontal line post insulator/porcelain post insulators

Post ceramic insulator is an electrical equipment used for supporting and insulating. It is mainly composed of ceramic parts and metal accessories (such as iron caps, flanges, etc.). Ceramic components are the core part of its insulation, generally cylindrical in shape, with high mechanical strength and good electrical insulation performance. Metal accessories are used for installation and fixation, which can firmly connect column ceramic insulators to supporting structures (such as towers, crossarms, etc.) or electrical equipment.


phone Phone

+86-15870073965
wp whatsapp

+86 15870073965
el Email

admin@huayaoelectric.com
Product Detail
Product Tags

Performance advantages of post porcelain insulator:

Good mechanical performance: able to withstand large axial and lateral loads. In some harsh weather conditions, such as strong winds, ice and snow, it can ensure that electrical components such as wires will not be displaced or damaged due to mechanical forces.
Excellent electrical insulation performance: It has high insulation resistance and breakdown voltage, which can effectively prevent leakage and flashover phenomena. In high-voltage transmission and distribution lines, good insulation performance is one of the key factors to ensure the safe operation of the power system.
Strong weather resistance: Ceramic materials themselves have good weather resistance and can work stably for a long time under different climatic conditions (such as high temperature, low temperature, humidity, etc.).

Main type of post porcelain insulator:


ANSI class Type No. Creepage distance mm Dry arcing distance mm Cantilever strength kN Flashover voltage Dry kV Flashover voltage Wet kV Critical impulse flashover voltage positive kV Critical impulse flashover voltage Negative kV RIV data to ground kV RIV data MAX RIV kV
57-1 S/L 356 165 125 80 60 130 155 15 100
57-2 S/L 559 241 125 110 85 180 205 22 100
57-3 S/L 737 311 125 125 100 210 260 30 200
57-4 S/L 1015 368 125 150 125 255 340 44 200
57-5 S/L 1145 438 125 175 150 290 380 44 200



Product name: porcelain insulator Model number:57-3
Material: porcelain Application: high voltage
Rated voltage: 12kV/33kV Product name: high voltage insulator
Brand name: Huayao Usage：Transmission lines
Application: insulation Place of origin: Jiangxi, China
Standard: IEC60383 Color: brown/white

Product Details

57-3 porcelain post type insulator

Place of Origin:  China
Brand name:  HUAYAO
Certification:  ISO9001
Daily output:  10000 piece

Payment & Shipping
Minimum Order Quantity: 10 pieces
Packaging Details:  normal export packaging
Supply Ability:  50000pcs
Delivery Port:  Ningbo,Shanghai
Payment term:  TT, L/C, FCA


Quick Detail：

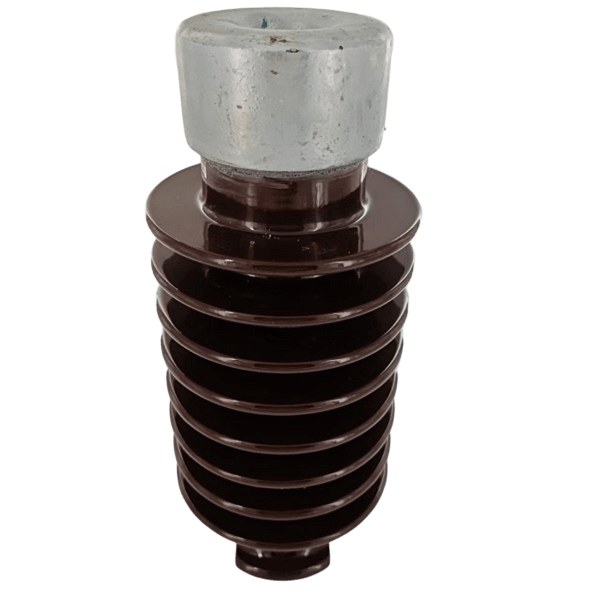

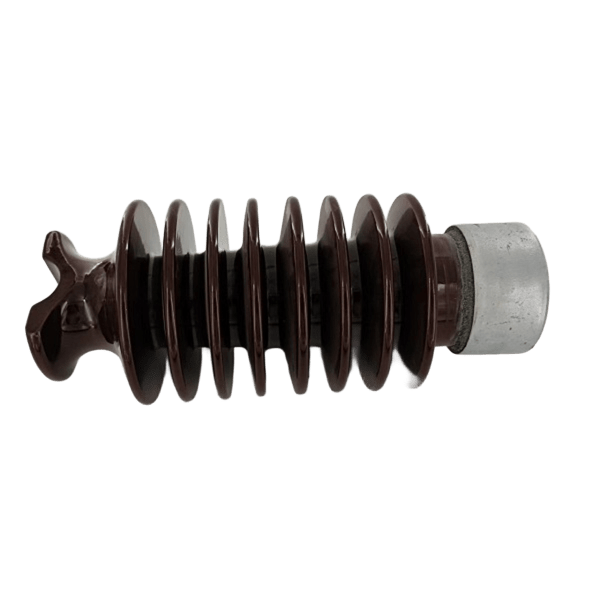

Porcelain Standard Profile post Insulators 57-3

Dimensions
Diameter (D): 165mm
Spacing (H): 381mm
Creepage Distance: 737mm

Mechanical Values
Cantilever strength: 125kN

Electrical Values
Dry flashover Voltage:125kV
Wet flashover Voltage: 100kV
Critical impulse flashover voltage positive: 210kV
Critical impulse flashover voltage negative:260kV

Radio Influence Voltage Data
Test Voltage RMS to Ground: 30kV
Maximum RIV at 1000 kHz: 200μV

Related products for porcelain insulator:



The Production process flow:

The production process of porcelain insulators in Jiangxi Huayao Electric Co.,Ltd is as follows:
Mix raw material=>make blank shape=>Drying=> Glazing=>put into kiln=> Glue assembly=> routine test and other test=> Finished products package
