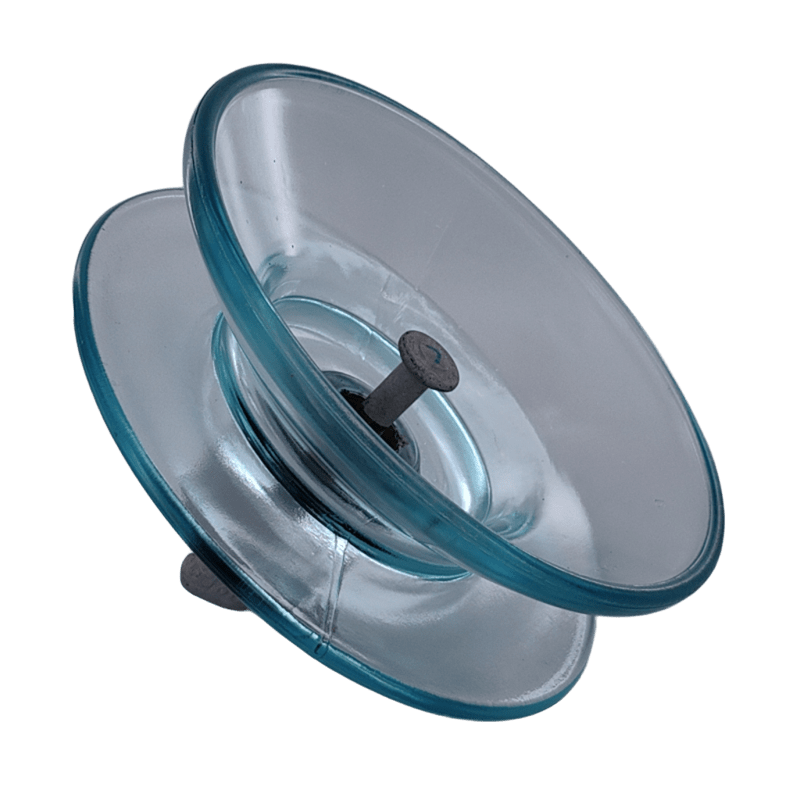

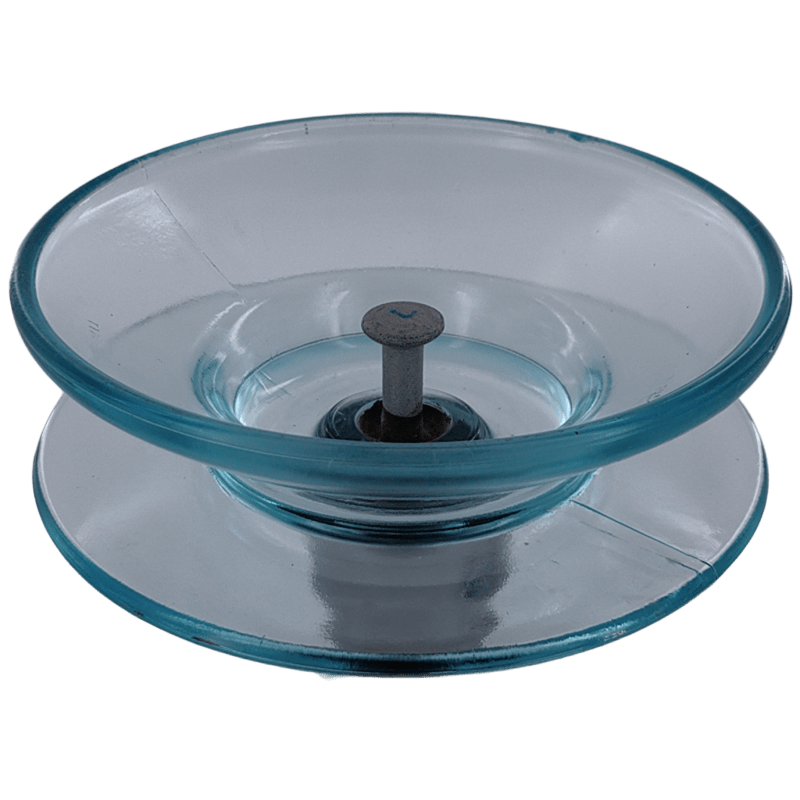

Double-umbrella disk Suspension Insulator toughened Glass Insulator UG70B146/450D/16R

High Voltage Insulator tempered glass insulator UG70B146/450D  70kN GLASS INSULATOR toughened glass insulators UG70B/450D Glass insulator is a special insulation component used in overhead transmission lines to provide insulation and support for wires. Glass insulators are usually composed of iron caps, tempered glass pieces, and steel feet, which are bonded together with cement adhesive.

Double umbrella glass insulator is the a kind of insulation equipment used for high-voltage transmission lines, the following will be from its structure, characteristics, applications and other aspects of a detailed introduction:
Double umbrella skirt design: The double umbrella glass insulator has two umbrella skirts of different sizes, one large and one small are arranged alternately. This design increases the creepage distance of the insulator, can effectively prevent the flashover phenomenon in the humid, dirty and other harsh environment, improve the insulation performance and anti-fouling ability of the insulator.
Connection structure: ball socket and ball head structure are generally used. This connection method has high mechanical strength and flexibility, can adapt to various stresses and deformations of transmission lines during operation, and is also convenient for installation and replacement of insulators.

Structural composition:

Product Details

High Voltage Insulator tempered glass insulator UG70B146/450D Place of Origin: China Brand name: HUAYAO Certification:  ISO9001 Daily output： 10000 pieces Payment & Shipping Minimum Order Quantity: 10 pieces Packaging Details： normal export packaging Supply Ability：50000pcs Delivery Port：Ningbo,Shanghai Payment term：TT, L/C, FCA

Quick Detail

Glass Double umbrella disc Suspension Insulators UG70B146/450D Dimensions Diameter (D): 280mm Spacing (H): 146mm Creepage Distance: 450mm Coupling Size: 16mm Mechanical Values Mechanical Failing Load: 70kN Tension Proof: 35kN Electrical Values Dry Power-frequency Withstand Voltage: 80kV Wet Power-frequency Withstand Voltage: 45kV Dry Lightning Impulse Withstand Voltage: 120kV Puncture Withstand Voltage: 130kV Radio Influence Voltage Data Test Voltage RMS to Ground: 10kV Maximum RIV at 1000 kHz: 50μV Packing and Shipping Data Net Weight, Approximate: 6.3kg

The Production process flow:

The production process of glass insulators in Jiangxi Huayao Electric Co.,Ltd is as follows:

Mix raw material=>melt glass liquid=>press to glass insulator shape=> tempering treatment=>cold and shock test=> Glue assembly=> routine test and other test=> Finished products package

Huayao advantage products are glass insulators with a capacity of 40kN-550kN, which can meet the requirements of 10kV-500kV ultra-high voltage and extra high voltage transmission and transformation lines.

Huayao strictly complies with GB, ANSI, BS, DIN, AS, IEC standard designs, applicable to power transmission lines and substations.

Huayao has established a production line for ultra-high voltage tempered glass insulators with advanced production technology by introducing world-class production and testing equipment from Germany, Italy, and other countries. It has the ability to produce over 6 million pieces of AC and DC glass insulators annually.

The Production process flow:

The production process of glass insulators in Jiangxi Huayao Electric Co.,Ltd is as follows:
Mix raw material=>melt glass liquid=>press to glass insulator shape=> tempering treatment=>cold and shock test=> Glue assembly=> routine test and other test=> Finished products package.

Standard of glass insulator:

The tests have been performed in accordance with:
GB/T1001.1-2021 Insulators for overhead lines with a norminal voltage above 1000V Part1: Ceramic or glass insulator units for a.c. systems Definitions, test methods and acceptance criteria (IEC 60383-1:2021 MOD)
GB/7253-2019 Insulator for overhead lines with a nominal voltage above 1000V-Ceramic or glass insulator units for a.c. systems-Characteristics of insulator units of cap and pin type (IEC 60305:2021 MOD)
IEC 60383-1:2023 Insulators for overhead lines with a norminal voltage above 1000V
IEC 60120:2020 Dimensions of ball and socket couplings of string insulator units
Jiangxi Huayao electric Co.,ltd strictly compliance with above standard. We do the factory test report as above standard.
Huayao always do following test for each products:
1.Verification of the Dimensions
2.Verifications of Displacements
3.Locking system test
4.Galvanized test
5.Thermal shock test
6.Mechanical Failing Load Test
7.Power frequency puncture withstand test

Package of the glass insulator：

Standard export wooden cases Non fumigation wooden box
