Aerodynamic Type Glass Insulator

Open air profile toughened Glass Insulator U70BP/146M

High Voltage aerodynamic Insulator tempered glass insulator U70BP/146M
70kN aerodynamic GLASS INSULATOR toughened glass insulators U70BP/146M
Glass insulator is including standard type, pollution resistant type, DC type, spherical type, aerodynamic type, ground wire type, and contact network for electrified railwaysJiangxi Huayao electric Co.,ltd produce Standard type glass insulator 40-550Kn, Pollution resistant type 70-400Kn, mutil-umbrella type 120-330kN, Glass insulator aerodynamic type 120-300kN, ground wire type.
Open air profile Suspension Insulator toughened Glass Insulator U100BP/146M high voltage suspension open air profile 100 kN toughened glass insulator U100BP/146M

The shape and layout of the umbrella skirt can effectively reduce wind resistance, and the wind load it bears is significantly reduced compared to traditional insulators in strong wind environments. For example, the use of aerodynamic insulators on transmission lines in windy coastal areas or high mountain tuyere locations can greatly reduce the lateral wind pressure on towers.

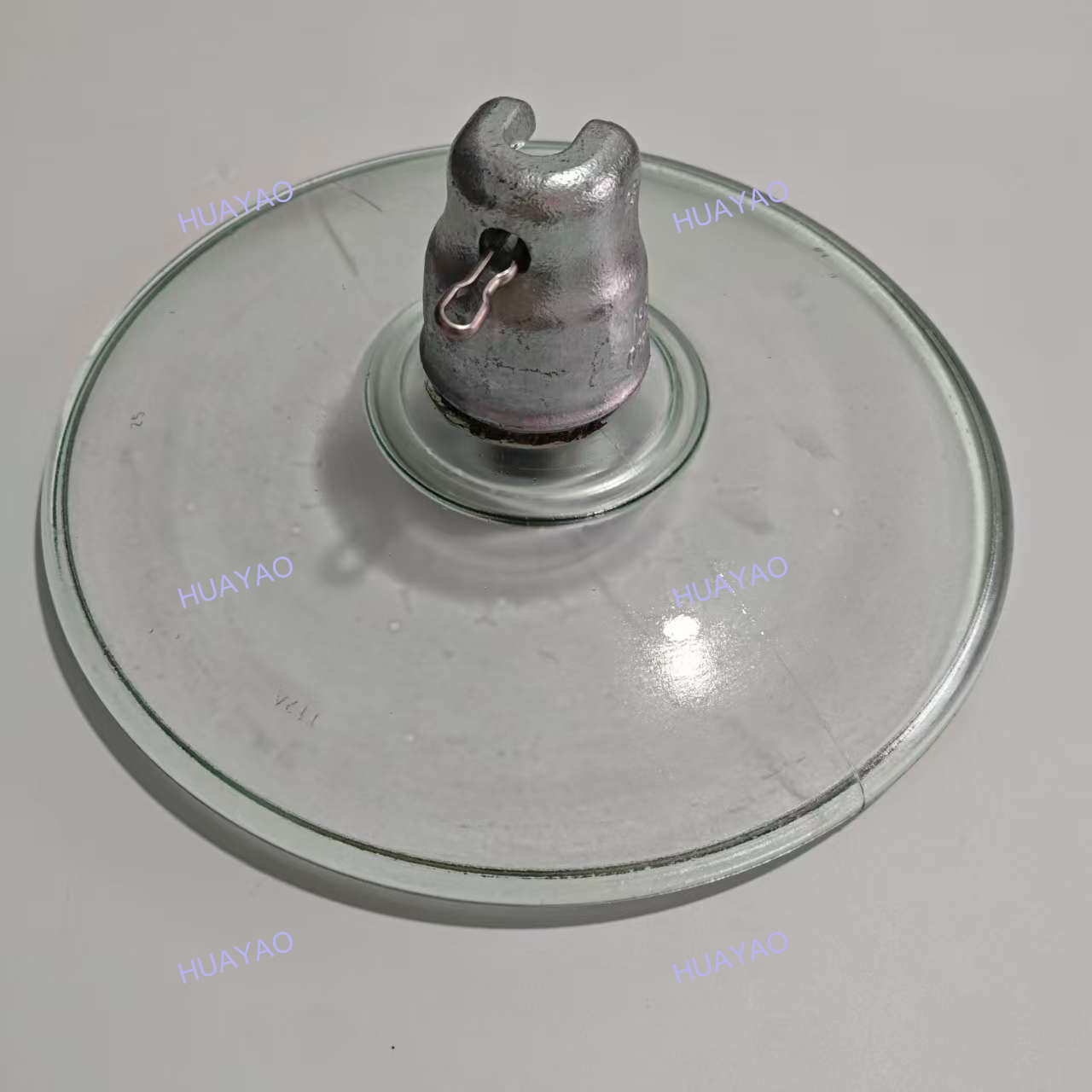

High voltage suspension 120 kN open air profile type toughened glass insulator U120BP/146M glass insulators

The skirt structure of the aerodynamic insulator can effectively reduce the deposition of filth. The distance between the umbrella skirt and shape design makes it difficult for dust, salt spray and other filthy substances to accumulate on the surface of the insulator. For example, in industrial pollution areas or coastal salt spray environment, traditional insulators may lead to a decline in insulation performance due to the accumulation of filth, but aerodynamic insulators can take advantage of their structural advantages to make filth more easily washed away under natural conditions such as wind and rain.

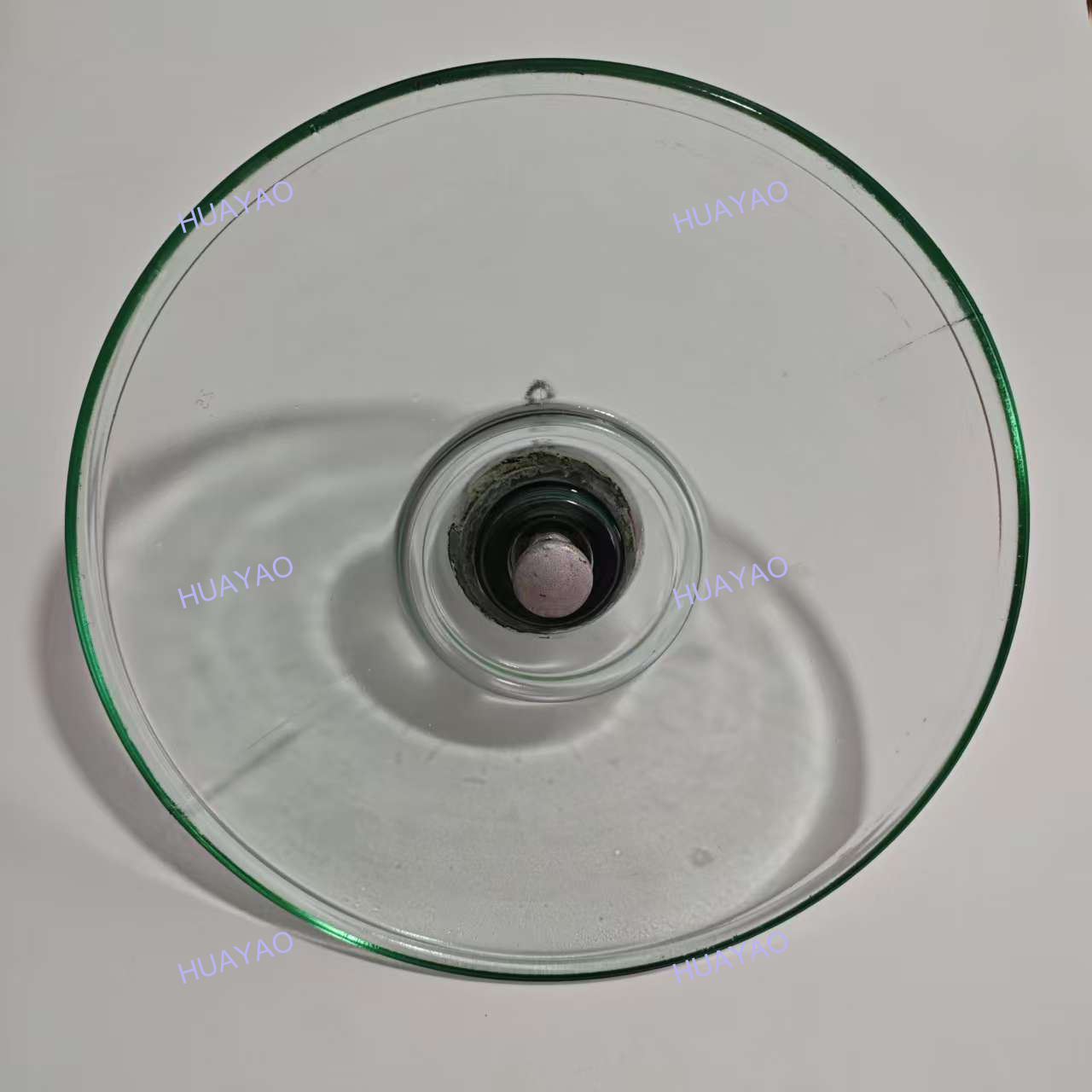

33KV 160KN IEC standard U160BP/146M open air profile glass suspension insulator

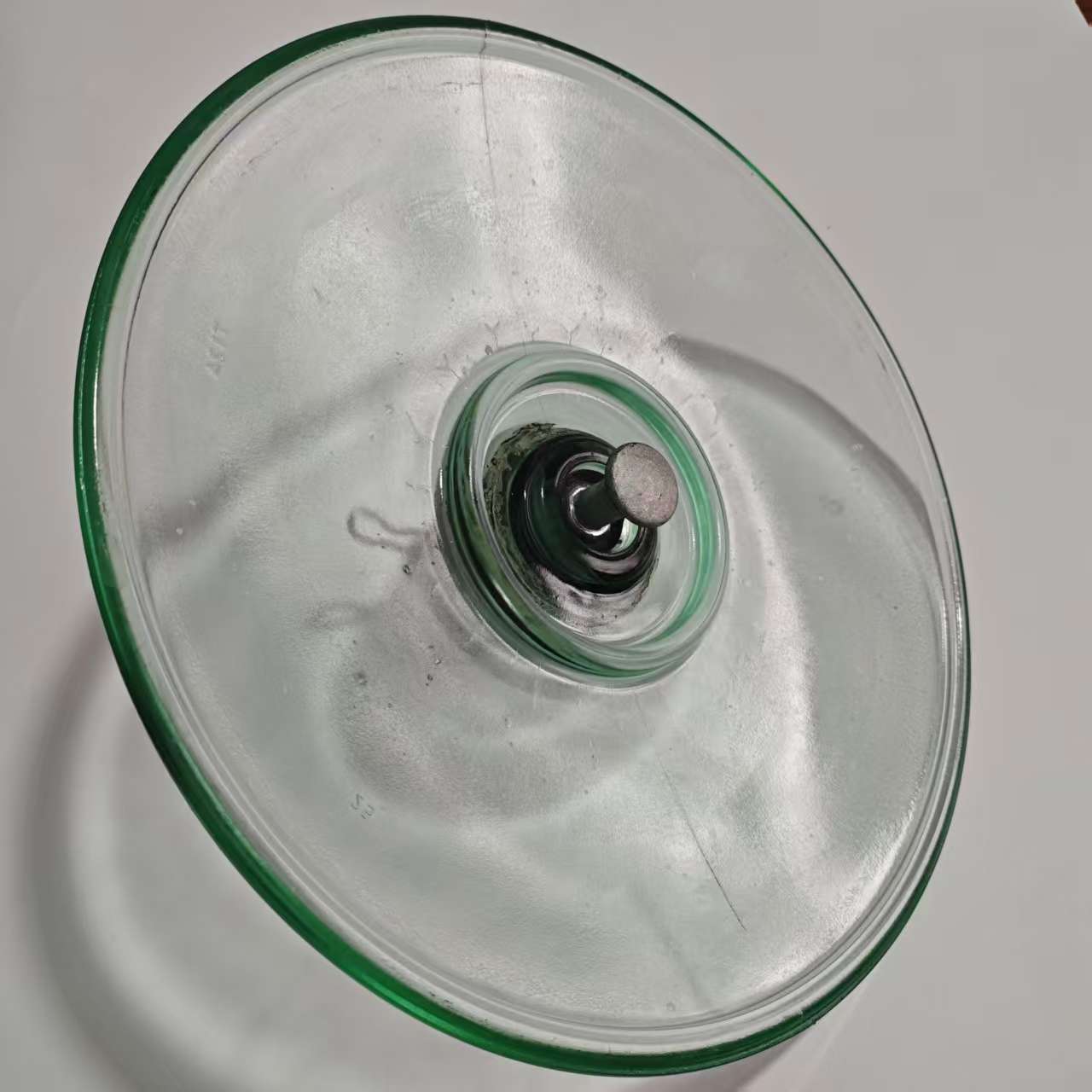

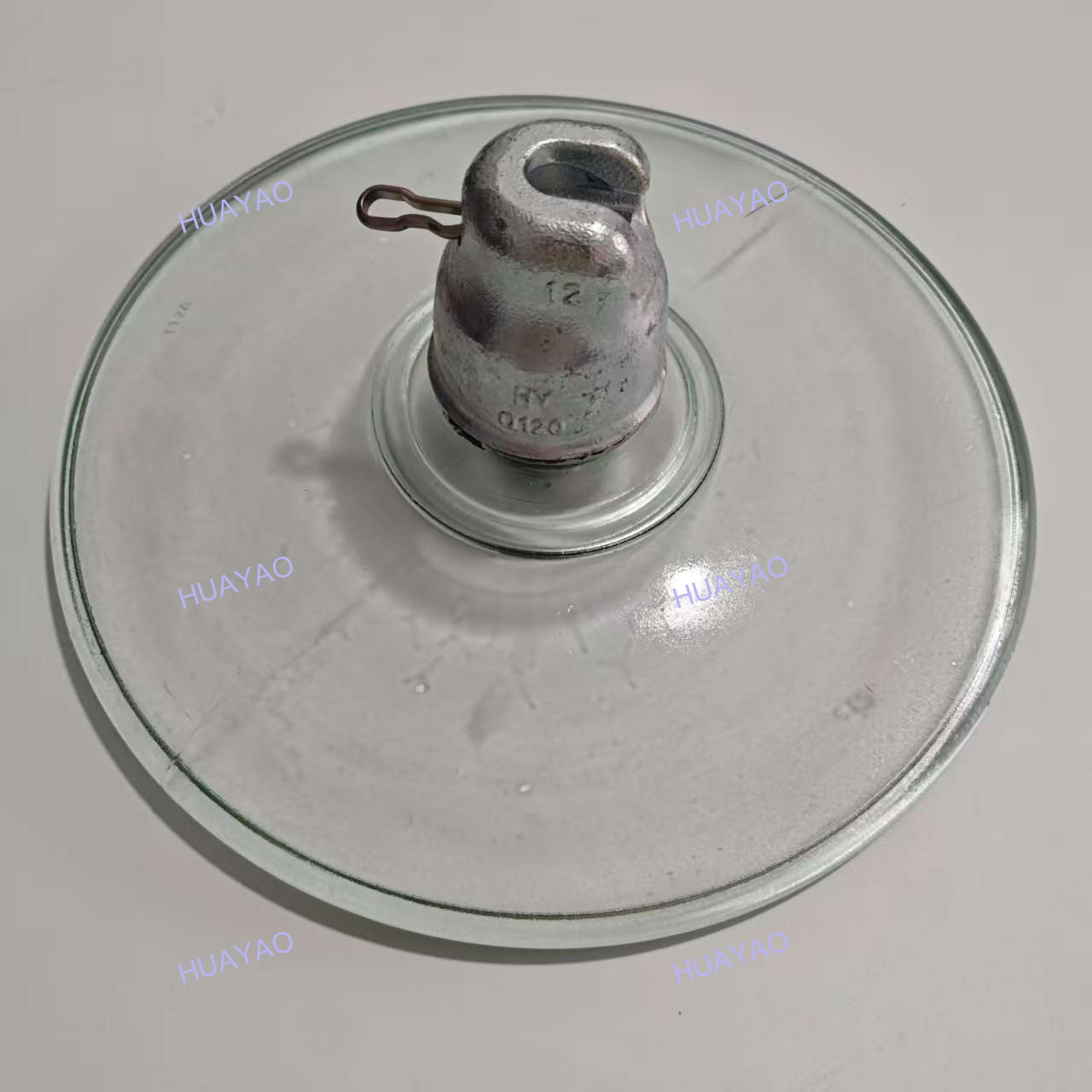

160kN open air profile disc suspension glass insulator U160BP/155M
Glass insulator is a special insulation component used in overhead transmission lines to provide insulation and support for wires.
Good anti-pollution flashover performance of aerodynamic Insulator
The skirt structure of the aerodynamic insulator can effectively reduce the deposition of filth. The distance between the umbrella skirt and shape design makes it difficult for dust, salt spray and other filthy substances to accumulate on the surface of the insulator. For example, in industrial pollution areas or coastal salt spray environment, traditional insulators may lead to a decline in insulation performance due to the accumulation of filth, but aerodynamic insulators can take advantage of their structural advantages to make filth more easily washed away under natural conditions such as wind and rain.
210kN insulators U210BP170M open air profile Suspension Electrical Glass Insulator

210kN open air profile disc suspension glass insulator U210BP/170M

Huayao advantage products are glass insulators with a capacity of 40kN-550kN, which can meet the requirements of 10kV-500kV ultra-high voltage and extra high voltage transmission and transformation lines.

Huayao strictly complies with GB, ANSI, BS, DIN, AS, IEC standard designs, applicable to power transmission lines and substations.
240kN insulators U240BP/170M open air profile Suspension Electrical Glass Insulator

240kN open air profile disc suspension glass insulator U240BP/170M

Huayao's glass insulators and electrical equipment can withstand the test of various complex environments, operate stably and reliably, and show strong adaptability and excellent performance. Whether in hot and rainy tropical areas, desert areas with harsh climate, or mountainous areas with complex terrain.
